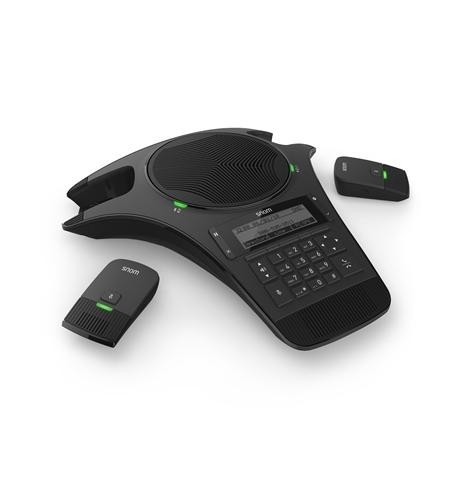

Snom Conferencing System

Supported Endpoints

Preparation

A functioning DHCP server is mandatory. Connect the conference system to your network. Make a note of the ** IP address ** that the conference system received from the DHCP server.

Create a new Basic Configuration Template

The next step is to build a new basic configuration for the conference system. To do this, go to the pascom WEB GUI on Devices> Basic configuration

Duplicate the basic configuration Empty Generic Profile and give it a name e.g. SNOM C520 conference. Select the new basic configuration and click on Edit> Configuration.

Now replace the existing code with the following code snipped:

<?xml version="1.0"?>
<settings>
	<time_date>
		<date_format>DD/MM/YY</date_format>
		<hr24_clock>1</hr24_clock>
		<ntp_dhcp_option>0</ntp_dhcp_option>
		<ntp_server>1</ntp_server>
		<ntp_server_addr>pool.ntp.org</ntp_server_addr>
		<ntp_server_update_interval>1000</ntp_server_update_interval>
		<timezone_dhcp_option>0</timezone_dhcp_option>
		<selected_timezone>Europe/Berlin</selected_timezone>
	</time_date>
	<profile>
		<admin>
			<access_password>{{{admin_password}}}</access_password>
		</admin>
	</profile>
	<remoteDir>
{{!-- LDAP settings --}}
{{#if_eq ldap_proxy 'off'}}


		<ldap_directory_name></ldap_directory_name>
		<ldap_number_filter></ldap_number_filter>
		<ldap_firstname_filter></ldap_firstname_filter>
		<ldap_lastname_filter></ldap_lastname_filter>
		<ldap_server_address></ldap_server_address>
		<ldap_port>389</ldap_port>
		<ldap_authentication_type>simple</ldap_authentication_type>
		<ldap_base></ldap_base>
		<ldap_user_name></ldap_user_name>
		<ldap_access_password></ldap_access_password>
		<ldap_max_hits>200</ldap_max_hits>
		<ldap_work_number_attributes></ldap_work_number_attributes>
		<ldap_mobile_number_attributes></ldap_mobile_number_attributes>
		<ldap_other_number_attributes></ldap_other_number_attributes>
		<ldap_protocol_version>version_3</ldap_protocol_version>
		<ldap_search_delay>0</ldap_search_delay>
		<ldap_incall_lookup_enable>0</ldap_incall_lookup_enable>
		<ldap_outcall_lookup_enable>0</ldap_outcall_lookup_enable>
		<ldap_enable>0</ldap_enable>
		<ldap_firstname_attribute></ldap_firstname_attribute>
		<ldap_lastname_attribute></ldap_lastname_attribute>
		<ldap_check_certificate>0</ldap_check_certificate>
		<broadsoft_enable>0</broadsoft_enable>
{{else}}


		<ldap_directory_name>pascom LDAP</ldap_directory_name>
		<ldap_server_address>{{{httpip}}}</ldap_server_address>
		<ldap_number_filter>(&amp;(telephoneNumber=%)(cn=*))</ldap_number_filter>
		<ldap_base>dc=phonebook,{{{ldap_suffix}}}</ldap_base>
		<ldap_access_password>{{{ldap_password}}}</ldap_access_password>
		<ldap_max_hits>200</ldap_max_hits>
		<ldap_work_number_attributes>telephoneNumber</ldap_work_number_attributes>
		<ldap_mobile_number_attributes>mobile</ldap_mobile_number_attributes>
		<ldap_other_number_attributes>telephoneNumber</ldap_other_number_attributes>
		<ldap_protocol_version>version_3</ldap_protocol_version>
		<ldap_search_delay>0</ldap_search_delay>
		<ldap_incall_lookup_enable>1</ldap_incall_lookup_enable>
		<ldap_outcall_lookup_enable>1</ldap_outcall_lookup_enable>
		<ldap_enable>1</ldap_enable>
		<ldap_firstname_attribute>cn</ldap_firstname_attribute>
		<ldap_lastname_attribute></ldap_lastname_attribute>
		<ldap_check_certificate>0</ldap_check_certificate>
		<broadsoft_enable>0</broadsoft_enable>
{{#if vpnconnection}}


		<ldap_port>389</ldap_port>
		<ldap_authentication_type>simple</ldap_authentication_type>
{{else}}


		<ldap_port>636</ldap_port>
		<ldap_authentication_type>ssl</ldap_authentication_type>
{{/if}}


		<ldap_firstname_filter>(|(cn=%)(sn=%))</ldap_firstname_filter>
		<ldap_lastname_filter>(|(cn=%)(sn=%))</ldap_lastname_filter>
		<ldap_user_name>cn={{{ldap_username}}},dc=devices,{{{ldap_suffix}}}</ldap_user_name>
{{/if_eq}}


	</remoteDir>
{{!-- SIP settings --}}


	<sip_account>
		<idx id="1">
			<sip_account_enable>1</sip_account_enable>
			<label>{{{displayname}}}</label>
			<display_name>{{{displayname}}}</display_name>
			<primary_outbound_proxy_server_address>{{{httpip}}}</primary_outbound_proxy_server_address>
			<user_id>{{{013pee_username}}}</user_id>
			<authentication_name>{{{013pee_username}}}</authentication_name>
			<authentication_access_password>{{{013pee_password}}}</authentication_access_password>
			<primary_sip_server_address>{{{cs_domain}}}</primary_sip_server_address>
			<primary_registration_server_address>{{{cs_domain}}}</primary_registration_server_address>
			<unregister_after_reboot_enable>0</unregister_after_reboot_enable>
			<registration_retry_time>10</registration_retry_time>
			<mwi_subscription_expires>3600</mwi_subscription_expires>
			<primary_registration_expires>3600</primary_registration_expires>
			<access_code_retrieve_voicemail>{{{setting sys.asterisk.dialplan.global.voicebox.watched.value }}}</access_code_retrieve_voicemail>
{{#if_eq voip_sip 'tls'}}

			<primary_outbound_proxy_server_port>5061</primary_outbound_proxy_server_port>
			<transport_mode>tls</transport_mode>
			<primary_sip_server_port>5061</primary_sip_server_port>
			<primary_registration_server_port>5061</primary_registration_server_port>
			<local_sip_port>5061</local_sip_port>
			<voice_encryption_enable>1</voice_encryption_enable>
{{else}}
    {{#if_eq voip_sip 'udp'}}

			<primary_outbound_proxy_server_port>5060</primary_outbound_proxy_server_port>
			<transport_mode>udp</transport_mode>
			<primary_sip_server_port>5060</primary_sip_server_port>
			<primary_registration_server_port>5060</primary_registration_server_port>
			<local_sip_port>5060</local_sip_port>
			<voice_encryption_enable>0</voice_encryption_enable>
    {{else}}

			<primary_outbound_proxy_server_port>5060</primary_outbound_proxy_server_port>
			<transport_mode>tcp</transport_mode>
			<primary_sip_server_port>5060</primary_sip_server_port>
			<primary_registration_server_port>5060</primary_registration_server_port>
			<local_sip_port>5060</local_sip_port>
			<voice_encryption_enable>0</voice_encryption_enable>
    {{/if_eq}}
{{/if_eq}}

			<codec_priority>
				<idx id="1">g711u</idx>
				<idx id="2">g711a</idx>
				<idx id="3">g729</idx>
				<idx id="4">g726</idx>
				<idx id="5">g722</idx>
			</codec_priority>
		</idx>
	</sip_account>
{{!-- Language --}}


	<user_pref>
		<language>de</language>
		<web_language>en</web_language>
	</user_pref>
</settings>

Save the basic configuration.

Create/Add the Conference System

Insert under Devices> Device list a new device of type IP-Telefon: Hersteller beliebig oder Softphone. Now select the new basic configuration you created earlier (SNOM C520 conference).

Under the tab Assign you give the conference device an user. Finally save!

Provisioning the Conference System

Check the conference system in the device list and go to Action> Provisioning URL where you can copy the provisioning URL to the clipboard.

With the IP address noted at the beginning, go to the web interface of your SNOM conference system. Under Servicing> Provisioning you will find the Server URL field in which the Provisioning URL must be stored. Click on Save and restart the conference system by clicking on Reboot.
